Creating an AI Enemy for our FPS (FPS Series Part 6)

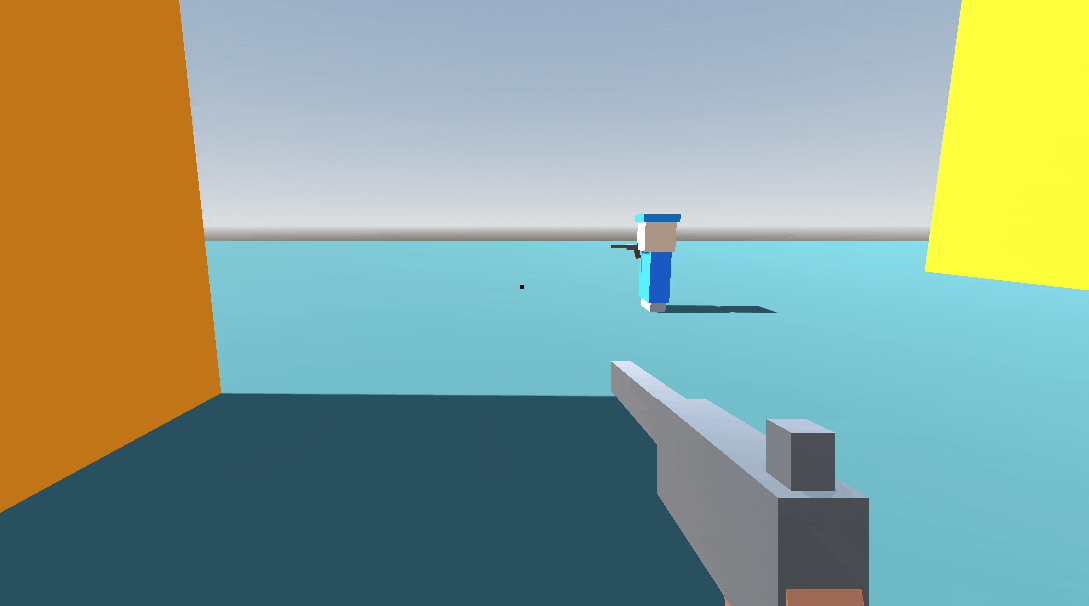

AI controller FPS game

This post is part of Godot FPS tutorial series.

Concept: We will make enemy controller that uses same weapon system that player does, moves in same way as player but uses Godot’s navigation system to calculate paths and takes its own decisions.

Our game world is interactive, our weapons feel good, but it’s all a bit… lonely. An FPS game needs enemies to fight. In this tutorial, we will build a complete AI enemy from scratch that can see the player, chase them, and shoot back.

The most exciting part? We’re going to reuse our existing WeaponManager and give it to the enemy. This means any weapon we create for the player will also work for the AI, saving us a massive amount of work.

Here’s our roadmap:

  1. Prepare the Level for Navigation: AI needs to know where it can and can’t walk. We’ll set up a NavigationRegion3D in our level.
  2. Build the Enemy Scene: We’ll create the enemy’s character scene, complete with visuals, a character body, and—most importantly—its own WeaponManager.
  3. Write the EnemyController AI Script: This is the brain. We’ll write a state machine that allows the enemy to wander around, detect the player, enter combat, and fire its weapon.
  4. Friendly Fire and Factions: We’ll implement a simple faction system using Godot’s groups to prevent the player and the enemy from shooting themselves.

For this tutorial, we will not be implementing the health system yet. The player and enemy will shoot at each other, and we’ll see the impacts, but no one will take damage. That’s the final piece of the puzzle we’ll add in the next part.

Preparing the Arena for Navigation

An AI can’t just guess where to go. It needs a “navmesh”—a map of all the walkable surfaces in the level. Let’s create one.

  1. Open your Level.tscn scene.
  2. In the Scene Tree, create a new NavigationRegion3D node.
  3. All the static geometry that the AI should be able to walk on (and around) needs to be a child of this NavigationRegion3D. Move your Arena node to be child of the NavigationRegion3D node. Because Arena contains all the MeshInstance3D nodes for entire level.
  4. Select the NavigationRegion3D node. At the top of the 3D viewport, you’ll see a new “Bake” menu. Click Bake NavMesh.
  5. You should now see the walkable areas of your level covered in a translucent blue mesh. This is the navmesh! The AI will use this to plan its paths. If you change your level geometry, you’ll need to re-bake the navmesh.

Our level is now AI-ready.

Assembling the Enemy

Just like our player, the enemy is a CharacterBody3D with a collection of components.

  1. Create a new folder Actors/Enemy.
  2. Create a new scene with a CharacterBody3D as its root. Name it Enemy and save it as Enemy.tscn in the new folder.
  3. Add a CollisionShape3D with a CapsuleShape3D.
  4. Add placeholder visuals. You can copy the Visuals and Head nodes from your Player.tscn and paste them as children of the Enemy. Feel free to change the color of the body mesh to differentiate it.
  5. Add the Weapon Manager: This is the crucial step.
    • Find the GunMount node under the Head. If you don’t have one, create a Node3D there.
    • Attach the WeaponManager.gd script to it. Yes, the exact same script the player uses!
    • In the Inspector, configure the Weapon Manager:
      • Drag the root Enemy node into the Shooter Body slot.
      • Add one element to the Weapon Data Array and drag your revolver.tres into it.
  6. Add the AI Brain:
    • At the root of the Enemy scene, add a NavigationAgent3D node. This component will handle pathfinding calculations for us.
    • Add a few Timer nodes for controlling AI behavior: AttackTimer, AlertCooldown, WanderTimer, and StrafeTimer.
  7. Attach a new script to the root Enemy node. Call it EnemyController.gd.

Your final Enemy.tscn scene tree should look something like this:

Enemy (CharacterBody3D)
├─ CollisionShape3D
├─ Visuals
│  └─ ...
├─ Head
│  └─ GunMount (WeaponManager.gd)
├─ NavigationAgent3D
├─ AttackTimer
├─ AlertCooldown
├─ WanderTimer
└─ StrafeTimer

Scripting the Enemy AI Brain

This is the most complex part, but we’ll break it down. Our AI will use a “state machine” to decide what to do. Its possible states are: WANDER, ALERT (heard a noise or lost the player), and COMBAT.

Open EnemyController.gd. We’ll build it up section by section.

Variables and Initialization

First, let’s set up all the variables and node references our AI will need.

extends CharacterBody3D

# --- State Machine ---
enum State { IDLE, WANDER, PATROL, ALERT, COMBAT, GUARD }
var current_state = State.IDLE

# --- AI Behavior Modes ---
enum BehaviorMode { GUARD, WANDER, PATROL }

# --- AI Parameters ---
@export_group("Behavior")
@export var behavior_mode: BehaviorMode = BehaviorMode.WANDER
@export var move_speed: float = 3.0
@export var chase_speed: float = 4.5
@export var strafe_speed: float = 2.5
@export var turn_speed: float = 5.0
@export var gravity: float = 12.0
@export var guard_position_tolerance: float = 1.0 # How close to return to guard position
@export var guard_face_direction: Vector3 = Vector3.FORWARD # Direction to face when guarding (local space)

@export_group("Components")
@export var weapons_manager: WeaponManager

@export_group("Perception")
@export var detection_range: float = 30.0
@export var fov_angle: float = 90.0 # Field of view in degrees
@export var lose_sight_time: float = 3.0 # How long to stay alert after losing player

@export_group("Combat")
@export var optimal_attack_distance: float = 15.0
@export var aim_sway_amount: float = 0.1 # Adds slight inaccuracy

@export_group("Friendly Fire Group")
@export var friendly_group_name: String = "enemies"

# --- Node References ---
@onready var head: Node3D = $Head
@onready var nav_agent: NavigationAgent3D = $NavigationAgent3D
@onready var attack_timer: Timer = $AttackTimer
@onready var alert_cooldown: Timer = $AlertCooldown
@onready var wander_timer: Timer = $WanderTimer
@onready var strafe_timer: Timer = $StrafeTimer

# --- Pathfinding & State Variables ---
var path_node: Path3D
var current_path_point_index: int = 0
var player_ref: CharacterBody3D = null
var last_known_player_position: Vector3
var strafe_direction: Vector3 = Vector3.RIGHT
var initial_position: Vector3 # Spawn position for guard duty
var initial_rotation: Vector3 # Spawn rotation for guard duty
var is_returning_to_duty: bool = false

The Main Loop (_physics_process)

The _physics_process function is the heart of the AI. Each frame, it will:

  1. Apply gravity.
  2. Look for the player (_perceive_player).
  3. Decide if it needs to change state.
  4. Execute the logic for its current state.
  5. Move.
func _ready() -> void:
	add_to_group("enemies", true) # Persist group membership across scene loads
	add_to_group("mortals", true)

	# Store initial position and rotation for guard duty
	initial_position = global_position
	initial_rotation = rotation

	if not weapons_manager:
		push_error("Enemy '%s' has no Weapons Manager assigned!" % name)

	# Setup timers
	alert_cooldown.wait_time = lose_sight_time
	strafe_timer.timeout.connect(_on_strafe_timer_timeout)
	wander_timer.timeout.connect(_on_wander_timer_timeout)

	# Determine initial state based on behavior mode
	match behavior_mode:
		BehaviorMode.GUARD:
			_transition_to_state(State.GUARD)
		BehaviorMode.PATROL:
			path_node = get_node_or_null("Path3D")
			if path_node and path_node.curve.get_point_count() > 0:
				_transition_to_state(State.PATROL)
			else:
				push_warning("Enemy '%s' set to PATROL mode but no valid Path3D child found. Switching to GUARD mode." % name)
				behavior_mode = BehaviorMode.GUARD
				_transition_to_state(State.GUARD)
		BehaviorMode.WANDER:
			_transition_to_state(State.WANDER)


func _physics_process(delta: float) -> void:

	# 1. Apply gravity
	if not is_on_floor():
		velocity.y -= gravity * delta

	# 2. Perception and State Transitions
	_perceive_player()
	_update_state_machine()

	# 3. Execute State Logic
	var target_velocity := Vector3.ZERO
	match current_state:
		State.IDLE:
			pass # Do nothing, wait for wander timer
		State.GUARD:
			target_velocity = _get_guard_velocity()
			_apply_guard_rotation(delta)
		State.WANDER, State.PATROL, State.ALERT:
			target_velocity = _get_nav_path_velocity()
			_apply_body_rotation(target_velocity, delta)
		State.COMBAT:
			target_velocity = _get_combat_velocity(delta)
			_apply_body_rotation((player_ref.global_position - global_position), delta)
			_aim_at_target(player_ref, delta)
			_shoot_at_target()

	# 4. Apply Movement
	velocity.x = target_velocity.x
	velocity.z = target_velocity.z
	move_and_slide()

Perception and State Management

How does the AI see? How does it decide to fight? These functions handle that logic.

# =============================================================================
# PERCEPTION & STATE MANAGEMENT
# =============================================================================

func _perceive_player():
	var potential_player = _find_player_in_vicinity()
	if is_instance_valid(potential_player):
		player_ref = potential_player
		last_known_player_position = player_ref.get_aim_target_position() if player_ref.has_method("get_aim_target_position") else player_ref.global_position
	else:
		player_ref = null

func _update_state_machine():
	match current_state:
		State.IDLE, State.WANDER, State.PATROL, State.ALERT, State.GUARD:
			if player_ref:
				_transition_to_state(State.COMBAT)

		State.COMBAT:
			if not player_ref:
				_transition_to_state(State.ALERT)

func _transition_to_state(new_state: State):
	if current_state == new_state: return

	# print("%s -> %s" % [name, State.keys()[new_state]]) # For debugging
	current_state = new_state

	match new_state:
		State.GUARD:
			# If not at guard position, navigate there
			if global_position.distance_to(initial_position) > guard_position_tolerance:
				nav_agent.target_position = initial_position
				is_returning_to_duty = true
			else:
				is_returning_to_duty = false
		State.PATROL:
			# --- NEW ---: Start patrolling from the first point on the path.
			current_path_point_index = 0
			_update_patrol_target()
		State.WANDER:
			# If we enter wander, immediately find a new point instead of waiting
			_on_wander_timer_timeout()
		State.ALERT:
			nav_agent.target_position = last_known_player_position
			alert_cooldown.start()
		State.COMBAT:
			# Immediately stop any navigation pathfinding
			nav_agent.target_position = global_position
			strafe_timer.start() # Start strafing
		_:
			pass # Other states don't need special entry logic

Movement and Combat Actions

These are the functions that do the actual work: moving along a path, aiming, and shooting.


# =============================================================================
# MOVEMENT & ACTION LOGIC
# =============================================================================

# --- NEW FUNCTION ---
# Sets the navigation agent's target to the current patrol point on the Path3D.
func _update_patrol_target() -> void:
	if not path_node or path_node.curve.get_point_count() == 0:
		push_warning("Cannot update patrol target: Invalid Path3D or empty curve on '%s'. Switching to GUARD mode." % name)
		_transition_to_state(State.GUARD)
		return

	# Ensure the index loops around if it goes past the end
	if current_path_point_index >= path_node.curve.get_point_count():
		current_path_point_index = 0

	# The points in Path3D's curve are local to the Path3D node.
	# We need to convert the local point position to a global world position.
	var local_point_pos = path_node.curve.get_point_position(current_path_point_index)
	var global_target_pos = path_node.to_global(local_point_pos)

	nav_agent.target_position = global_target_pos


func _get_nav_path_velocity() -> Vector3:
	# --- MODIFIED ---: Added logic for PATROL state when destination is reached.
	if nav_agent.is_navigation_finished():
		if current_state == State.PATROL:
			# We've reached a patrol point, so we advance to the next one.
			current_path_point_index += 1
			_update_patrol_target()
			# A new target is set. Return zero this frame to let the nav agent
			# calculate the new path. Movement will resume on the next frame.
			return Vector3.ZERO

		if current_state == State.ALERT:
			# Return to original behavior mode after alert
			match behavior_mode:
				BehaviorMode.GUARD:
					_transition_to_state(State.GUARD)
				BehaviorMode.PATROL:
					_transition_to_state(State.PATROL)
				BehaviorMode.WANDER:
					_transition_to_state(State.WANDER)

		# For WANDER, ALERT, etc., if the path is finished, stop moving.
		return Vector3.ZERO

	var direction = (nav_agent.get_next_path_position() - global_position).normalized()

	# Smooth arrival for wandering and alert states
	if current_state == State.WANDER or current_state == State.ALERT:
		var distance_to_target = global_position.distance_to(nav_agent.target_position)
		var slow_down_distance = 3.0
		if distance_to_target < slow_down_distance:
			var speed_factor = max(distance_to_target / slow_down_distance, 0.2)
			return direction * move_speed * speed_factor

	# For PATROL, use the standard move speed
	return direction * move_speed

func _get_combat_velocity(_delta: float) -> Vector3:
	var direction_to_player = (player_ref.global_position - global_position)
	var distance_to_player = direction_to_player.length()

	var combat_velocity = Vector3.ZERO

	# Move closer if too far, or back up if too close
	if distance_to_player > optimal_attack_distance:
		combat_velocity = direction_to_player.normalized() * chase_speed

	# Add strafing movement
	combat_velocity += strafe_direction * strafe_speed

	return combat_velocity

func _get_guard_velocity() -> Vector3:
	# If returning to duty position
	if is_returning_to_duty:
		var distance_to_position = global_position.distance_to(initial_position)
		if distance_to_position <= guard_position_tolerance:
			is_returning_to_duty = false
			return Vector3.ZERO

		# Get direction and apply smooth movement
		var direction = (nav_agent.get_next_path_position() - global_position).normalized()

		# Slow down as we approach the target position for smoother arrival
		var speed_factor = min(distance_to_position / guard_position_tolerance, 1.0)
		speed_factor = max(speed_factor, 0.3) # Minimum speed to prevent stopping too early

		return direction * move_speed * speed_factor
	else:
		return Vector3.ZERO # Stand still when on duty

func _apply_guard_rotation(delta: float):
	if is_returning_to_duty:
		# Face the direction we're moving when returning to position (only horizontal rotation)
		var next_position = nav_agent.get_next_path_position()
		var movement_direction = next_position - global_position
		# Flatten the direction to avoid upward tilt
		movement_direction.y = 0
		movement_direction = movement_direction.normalized()

		if movement_direction.length_squared() > 0.01:
			var target_basis = Transform3D().looking_at(movement_direction, Vector3.UP).basis
			self.global_transform.basis = self.global_transform.basis.slerp(target_basis, turn_speed * delta)
	else:
		# Return to the original spawn rotation when on duty
		var target_rotation = initial_rotation
		var target_transform = Transform3D()
		target_transform = target_transform.rotated(Vector3.UP, target_rotation.y)
		target_transform = target_transform.rotated(Vector3.RIGHT, target_rotation.x)
		target_transform = target_transform.rotated(Vector3.FORWARD, target_rotation.z)

		self.global_transform.basis = self.global_transform.basis.slerp(target_transform.basis, turn_speed * delta)

func _apply_body_rotation(look_direction: Vector3, delta: float):
	var horizontal_dir = look_direction * Vector3(1, 0, 1)
	if horizontal_dir.length_squared() > 0.01:
		var target_basis = Transform3D().looking_at(horizontal_dir.normalized(), Vector3.UP).basis
		self.global_transform.basis = self.global_transform.basis.slerp(target_basis, turn_speed * delta)

func _aim_at_target(target: Node3D, _delta: float):
	# Get the precise target position from the player character
	var aim_position: Vector3
	if target.has_method("get_aim_target_position"):
		aim_position = target.get_aim_target_position()
	else:
		aim_position = target.global_position # Fallback

	# Add some slight sway/inaccuracy to the aim
	var time = Time.get_ticks_msec() * 0.001
	var sway = Vector3(
		sin(time * 2.1) * aim_sway_amount,
		cos(time * 1.8) * aim_sway_amount,
		0
	)
	# Use the new aim_position for targeting
	var target_pos = aim_position + sway

	# Aim the head directly at the target
	head.look_at(target_pos, Vector3.UP)
	# The body rotation is handled separately, so we negate the body's influence on the head's Y rotation
	head.rotation.y = 0

func _shoot_at_target():
	if weapons_manager and attack_timer.is_stopped():
		weapons_manager.attack()
		attack_timer.start()

Also add rest of misc utility functions


# =============================================================================
# HELPER & UTILITY FUNCTIONS
# =============================================================================

func _find_player_in_vicinity() -> CharacterBody3D:
	var players = get_tree().get_nodes_in_group("players")
	if players.is_empty(): return null

	var player = players[0] # Assuming single player

	# 1. Check distance (uses player origin, which is fine for a broad check)
	if global_position.distance_to(player.global_position) > detection_range:
		return null

	# 2. Check Field of View (FOV)
	var vector_to_player = (player.global_position - global_position).normalized()
	var forward_vector = -self.global_transform.basis.z
	if forward_vector.dot(vector_to_player) < cos(deg_to_rad(fov_angle / 2)):
		return null


	var space_state = get_world_3d().direct_space_state
	# Use the determined los_target_pos for the raycast
	var query = PhysicsRayQueryParameters3D.create(head.global_position, player.global_position, 1, [self.get_rid()])
	var result = space_state.intersect_ray(query)


	return player if result and result.collider == player else null

func _pick_random_wander_point():
	var wander_radius = 15.0
	var random_dir = Vector3(randf_range(-1, 1), 0, randf_range(-1, 1)).normalized()
	var target_point = global_position + random_dir * wander_radius

	# Ensure the point is on the navmesh
	nav_agent.target_position = NavigationServer3D.map_get_closest_point(get_world_3d().navigation_map, target_point)

And timer callbacks


# =============================================================================
# TIMER CALLBACKS
# =============================================================================

func _on_strafe_timer_timeout():
	# Flip strafe direction, add a small random chance to keep same direction
	if randf() > 0.2:
		strafe_direction = strafe_direction.rotated(Vector3.UP, PI) # 180 degree turn
	strafe_timer.wait_time = randf_range(1.0, 3.0) # Strafe for a random duration
	strafe_timer.start()

func _on_wander_timer_timeout():
	if current_state == State.WANDER or current_state == State.IDLE:
		_pick_random_wander_point()
		_transition_to_state(State.WANDER)

func _on_alert_cooldown_timeout():
	# If the alert timer runs out and we haven't found the player, go back to normal behavior.
	if current_state == State.ALERT:
		match behavior_mode:
			BehaviorMode.GUARD:
				_transition_to_state(State.GUARD)
			BehaviorMode.PATROL:
				if path_node and path_node.curve.get_point_count() > 0:
					_transition_to_state(State.PATROL)
				else:
					_transition_to_state(State.GUARD) # Fallback to guard if no path
			BehaviorMode.WANDER:
				_transition_to_state(State.WANDER)

Factions and Friendly Fire

Right now, the raycasts from both the player and the enemy will hit anything. We need to tell them to ignore members of their own team.

  1. Add Groups:
    • Open Player.tscn. Select the root Player node. Go to the Node dock -> Groups and add it to the "players" group.
    • We already added the Enemy to the "enemies" group in its _ready function.
  2. Update WeaponEquipped.gd: We need to modify our fire_hitscan function to exclude allies.
    • First, add two new variables to the top of WeaponEquipped.gd.
# Add to WeaponEquipped.gd
@export var disable_friendly_fire: bool = true
# This will be set by the WeaponManager when the weapon is spawned.
var friendly_group_name: String

Next, modify the fire_hitscan function to use these.

# Modify fire_hitscan in WeaponEquipped.gd
func fire_hitscan() -> void:
    # ... (can_fire, consume_ammo checks) ...

    # ... (space_state, ray setup) ...
    var query = PhysicsRayQueryParameters3D.create(...)

    # --- THIS IS THE NEW PART ---
    var exclusions = [shooter_body.get_rid()]
    if disable_friendly_fire and not friendly_group_name.is_empty():
        for node in get_tree().get_nodes_in_group(friendly_group_name):
            if node is CollisionObject3D:
                exclusions.append(node.get_rid())
    query.exclude = exclusions
    # --- END NEW PART ---

    var result = space_state.intersect_ray(query)
    # ... (rest of the function) ...

Update WeaponManager.gd: The manager needs to tell each weapon what its friendly group is. Add this line to the _initialize_all_weapons and pickup_weapon functions, right after you instantiate the weapon_instance.

# Add inside the for loop in _initialize_all_weapons in WeaponManager.gd
var weapon_instance = weapon_data.weapon_equipped_scene.instantiate()

# --- ADD THIS LINE ---
if shooter_body.has_meta("friendly_group"):
    weapon_instance.friendly_group_name = shooter_body.get_meta("friendly_group")
# --------------------

if weapon_instance.has_method("set_weapon_data"): #...

Set the Meta Data: Finally, we need to tell the player and enemy what their group is.

  • In PlayerController.gd, inside _ready(), add: set_meta("friendly_group", "players").
  • In EnemyController.gd, inside _ready(), add: set_meta("friendly_group", "enemies").

The Final Showdown

You’re ready! Drag an instance of your Enemy.tscn into the Level.tscn. Place it somewhere on the navmesh.

Run the game.

The enemy should start wandering. When you get close enough, it will turn to face you and start shooting its revolver. You can shoot back. You will both see the impact effects (black cubes on the environment, red cubes on each other), but no one will die.

🔧 Note how enemy’s head looks downward if the origin of your player is on its feet!! This is because enemy tends to look at player’s origin. Instead of pointing to player’s origin, you can use player’s head’s origin. – I omitted these things from tutorial as it makes the code complicated. However, solutions to these problems are added to the Itch.io template.

You’ve just created a thinking, moving, shooting AI opponent using the very same weapon system you built for the player. This is a massive milestone! In our next tutorial, we’ll add the Health component, bringing consequences to this chaotic firefight.

💡 AI is not limited to simple detection & shooting. There are tons of things you can do with AI, but it is beyond the scope of a simple FPS tutorial.

Thank you for reading <3

mujtaba

,
←
→

Leave a Reply

Your email address will not be published. Required fields are marked *
